Brazed Heat Exchangers

OVERVIEW

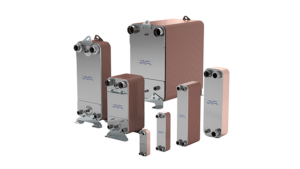

Alfa Laval copper-brazed plate heat exchangers are a compact, efficient and maintenance-free solution for heating, cooling, evaporation and condensing in numerous applications. Each unit is designed for duty optimization, with a range of unique features that ensure both superior thermal performance and maximum reliability. This enables the longest possible service life – even under conditions with extremely high design pressures.

0239 226 8511

If you have any questions, feel free to call us or use our quote form

talk pumps, today.

To speak to one of our agents online, click here

Sustainable heat transfer

  • Lightweight brazed construction offers much greater thermal efficiency and 75% smaller footprint than comparable shell-and-tubes.
  • The flexible DynaStatic distribution system in AC models enables higher efficiency in any evaporator duty and with any refrigerant
  • Alfa Laval’s FlexFlow plate design provides channel asymmetry that can be tailored to fit the application
  • We help you select the optimal pressing depth, plate pattern and configuration for your application
  • An ideal solution for use with natural refrigerants, thanks to the compact footprint, optimized plate design and high design pressure

With a robust and reliable construction, Alfa Laval’s comprehensive range of brazed plate technology offers a smart alternative to traditional heat exchangers. The application experience of Alfa Laval’s heating and cooling experts, combined with our continuous innovation in design and manufacturing techniques, ensures you always have access to the most competitive solution available. Example positions for our brazed heat exchangers include air conditioning and process chillers, commercial and industrial refrigeration, district heating and domestic hot water, heat pumps, gas boilers, energy storage, fuel cells, oil and fuel cooling, hydraulics, engine cooling, air compressors, and air driers.

Products

AC

Built with Alfa Laval’s flexible DynaStatic distribution system, which our experts optimize according to your specific application and choice of refrigerant, our AC line of heat exchangers offers top thermal performance in evaporation duties. Combined with the unique FlexFlow asymmetric channel plates, you get the maximum possible efficiency for your system.

AXP

Alfa Laval AXP stands for “extreme pressure,” and that’s exactly what these brazed plate heat exchangers are designed to handle. Specifically engineered for subcritical and transcritical applications using CO2 (R744) as a refrigerant, the AXP line can also support other fluids that require very high pressures. AXP units are suitable for duties ranging from heat recovery, condensing and sub-cooling to gas cooling, suction gas heating and more.

AXPM

Alfa Laval AXPM stands for “extreme pressure,” and that’s exactly what these marine approved brazed plate heat exchangers are designed to handle. Specifically engineered for marine subcritical and transcritical applications using CO2 (R744) as a refrigerant, the AXPM line can also support other fluids that require very high pressures. AXPM units are suitable for duties ranging from heat recovery, condensing and sub-cooling to gas cooling, suction gas heating and more.

CB

High efficiency, superior mechanical resistance and a compact footprint make Alfa Laval’s CB line of brazed plate heat exchangers ideal for demanding installations where space is limited. That’s why they have become a common replacement for other types of heat exchangers in HVAC duties, refrigeration, process heating and cooling, oil cooling, domestic hot water, solar heating and much more.
