PUMPING STATIONS
Elvaro Water Pressure Booster Pump and Tank System
“Efficient, Intelligent, Space-Saving Water Pressure Solutions”
What is Elvaro?
The Elvaro is Tricel’s latest generation of intelligent water pressure booster systems, offering high-performance, WRAS-approved pump and tank solutions. Designed to optimise space and energy efficiency, the Elvaro range is ideal for commercial, residential, industrial, and agricultural applications.
If you have any questions, feel free to call us or use our quote form
To speak to one of our agents online, click here

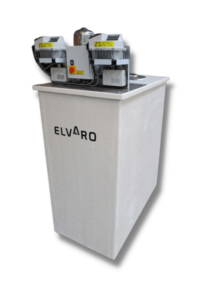

Elvaro T Range
Compact Tank and Pump System for Tight Spaces
The Elvaro T is a combined GRP tank and variable speed submersible pump set. It’s designed to maximise water storage in a compact footprint—perfect for installations with restricted space. Smaller units can even pass through standard doorways without disassembly.
Applications:
Apartment buildings
Hotels & hospitals
Irrigation
Schools
Washing & cleaning (CAT 5 option available)
Industries:
Commercial | Residential | Agricultural | HVAC | Building Services | Cooling
Key Features:
GRP insulated tank (500L to 2250L)
WRAS-approved with standard Type AA air gap (CAT 5 available)
Variable speed AISI 304 stainless steel submersible pumps
Pressure range: 2.0–6.0 bar | Flow range: 1.0–5.0 L/sec
Stainless steel discharge manifold with pressure vessel & isolating valves
Intelligent VSD control with automatic duty/standby/assist modes
Low water level protection and volt-free alarm output
‘Plug and pump’ setup for instant pressure
Power: 240V/1ph/50Hz standard (3ph optional)

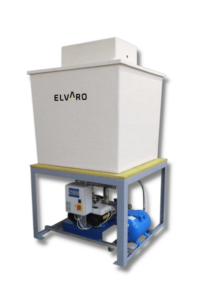

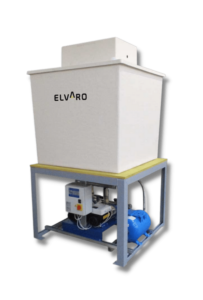

Elvaro B Range
Maximise Capacity in Vertical Space
The Elvaro B system saves valuable footprint by mounting the insulated GRP tank on a durable steel frame above the variable speed pump set. It’s an ideal replacement solution where you need more tank capacity without increasing the footprint.
Applications:
Domestic and commercial buildings
Factories and schools
Booster supplies for irrigation and washdown
CAT 5 arrangements available
Industries:
Commercial | Residential | Agricultural | HVAC | Building Services | Cooling
Key Features:
Elevated GRP insulated tank (500L to 2000L; custom sizes available)
Category 4 (Type AF) or Category 5 (Type AB) air gap options
WRAS-approved AISI 304 stainless steel pump sets (single/twin/triple)
Flow range: 4–30 m³/hr | Pressure: 2.5–6.0 bar (higher available on request)
Powder-coated steel mounting frame
Inlet float valve, screened overflow & float switch
Variable speed drives with dry run protection
Control panel for alternating pump operation on multi-pump units
Power: 230V/1ph/50Hz standard (3ph optional)
why choose elvaro
✅ Intelligent Variable Speed Control – Pumps ramp up/down automatically, saving energy and protecting pipework.
✅ Instant Pressure – Pre-configured for plug-and-play operation.
✅ Fast Delivery – Available quickly on most standard models.
✅ Easy to Operate – User-friendly controls mounted directly above tank.
Recent Projects
Recent Projects Completed
Tricel is one of the largest UK pump distributors specialising in Commercial Building Services projects. We offer a wide range of products from circulator pumps to Wet Riser booster sets.
Our team includes experts which are happy to select and quote your equipment requirements, or attend site and size the equipment from scratch. We at Tricel pride ourselves on the highest possible levels of customer service, before, during, and after project completion.
We provide preventative maintenance contracts and also cater for specific repairs, including replacements seals, or complete overhauls.
150
Hotels
125
Schools
50
Hospitals
300
Apartment Blocks
305
Commercial Buildings
PUMP COMMISSIONING
Our skilled team of specialist engineers are ready to specify, supply, install, service and maintain pumps and their control systems
SERVICE & MAINTENANCE
We provide preventative maintenance contracts and also cater for specific repairs, including replacements seals or complete overhauls
SITE SURVEYS & ASSESSMENTS
Our technical team will visit your location and complete an entire site survey to ensure your project is accurately specified, and the most suitable system installed and maintained to the highest quality
CUSTOMER TECHNICAL SUPPORT
Through our 35 years of operation, we have accumulated a wealth of product knowledge and application experience that we use to support our customers
